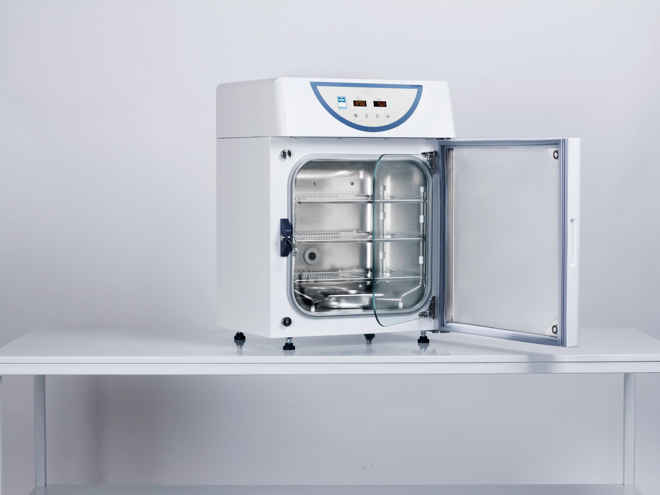

CO2CELL 50 - Standard

Product images are for illustrative purposes only and may differ from the actual product.
  • laboratory incubator - always creates the right atmosphere
  • chamber volume 50 litres
  • temperature range: from 5°C above ambient temperature to 60°C
  • uncontrolled relative humidity: up to 90 ± 5% RH at 37°C
  • CO2 concentration: 0.2% to 20%
  • CO2 sensor: no-deviation infrared sensor (IR)
  • wide selection of optional equipment and accessories
  • output for connecting a printer or PC
  • possibility of validation (IQ, OQ)
I am interested in CO2CELL 50 - Standard
Technical parameters

Inner dimensions

volume 50 l
depth 300 mm
width 402 mm
height 402 mm

Shelves (trays)*

standard equipment 3 pcs
Number 3 max. pcs

External dimensios

depth 460 mm
width 534 mm
height 717 mm

Weight

brut 50 kg
nett 38 kg

Temperature data

60 °C

Temperature deviations at 37 °C max.

in time ± 0,1 °C
in time ± 0,1 °C
in space ± 0,25 °C

CO2 Control

0,2 - 20 % CO2

Control accurancy

in space ± 0,25 %
measurement ± 0,1 %
measurement ± 0,1 %

Recovery rate

<=0,8 % / min

Required CO2pressure

0,3-0,7 bar / psi

Relative humidity

humidity dish volume 0,5 l

Humidity level at 37 °C, 5 °C CO2

standard 95 % RH

Electric parameters

max. output 0,35 kW
Voltage (50/60 Hz) 230 V
consumption at 37 °C 7,2 W

Note: All technical data are related to 22 °C of ambient temperature and ±10 % voltage swing rate ventilator 100 %, defrost off, lighting off.

Changes in the design and make reserved.
The values may differ depending on specific charge and media parameters.
