CLIMACELL 222 - ECO line

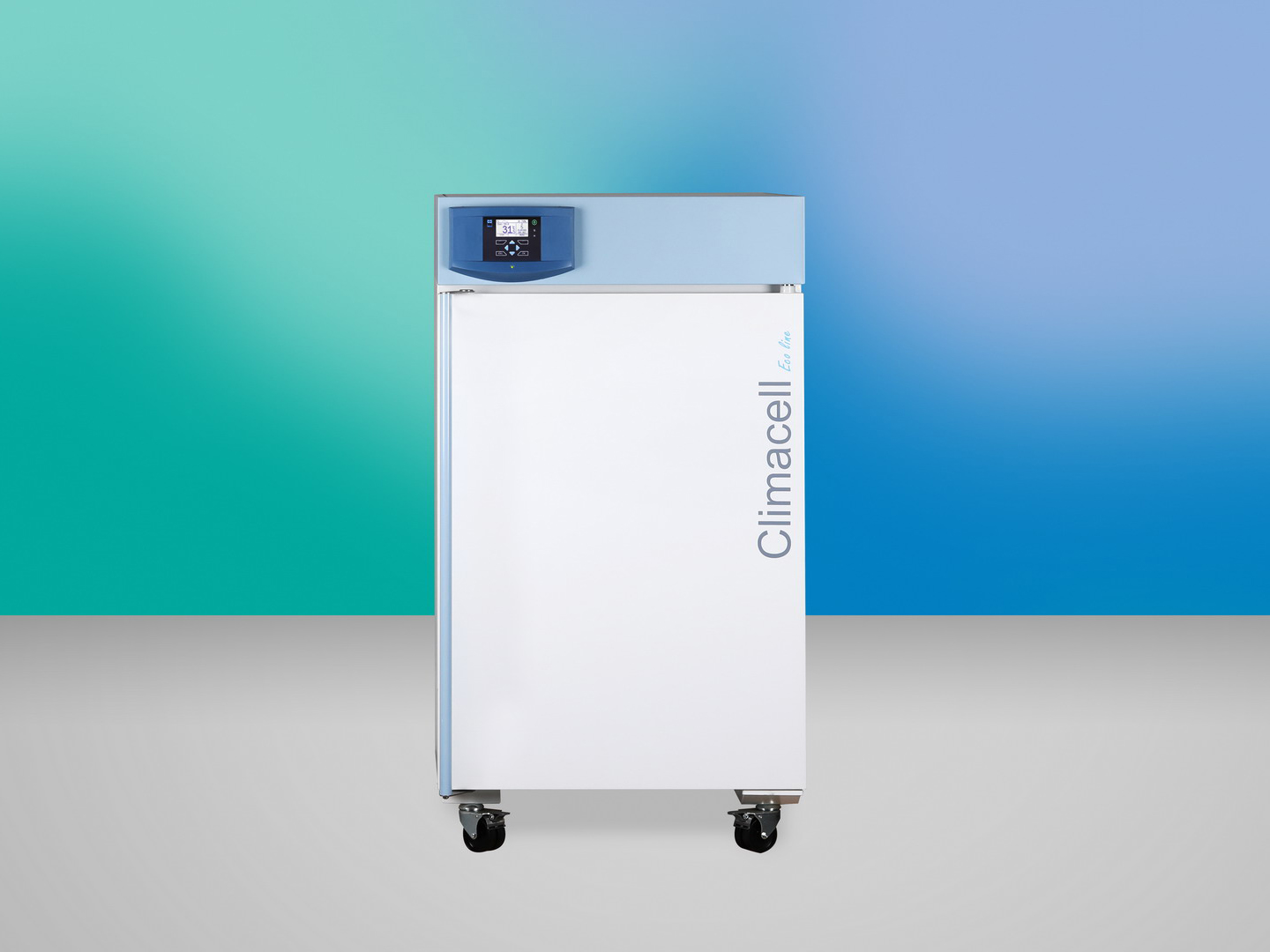

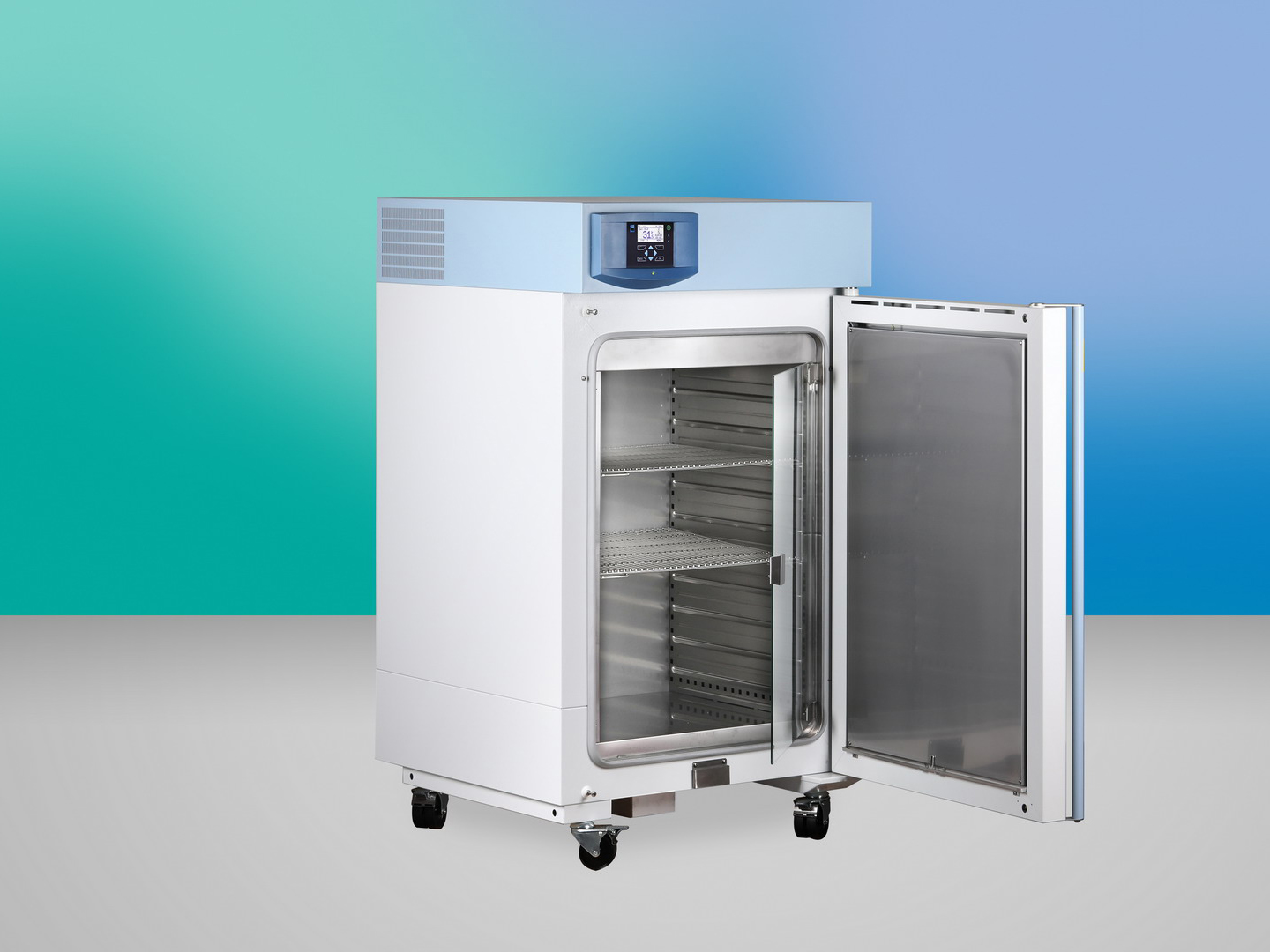

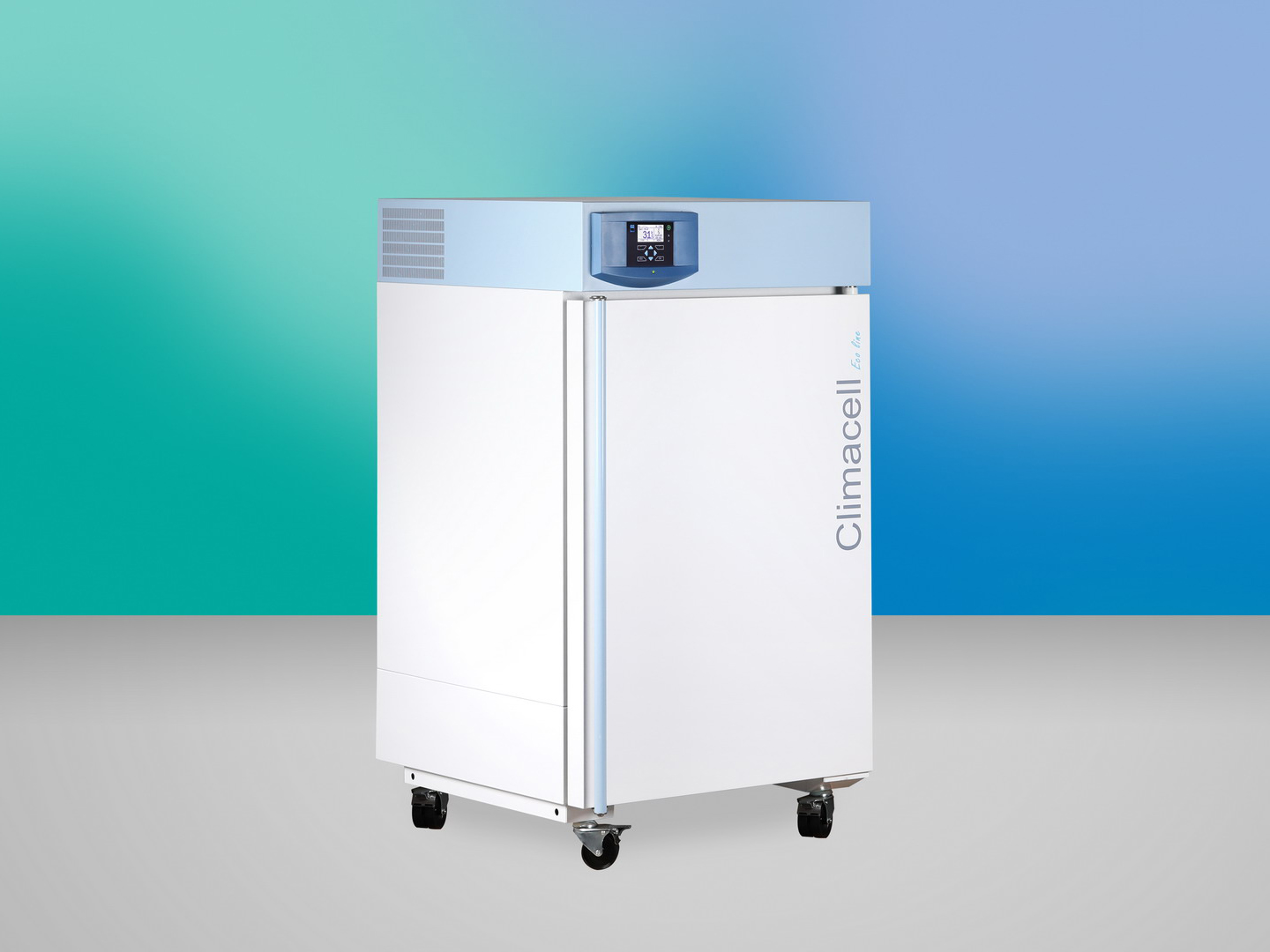

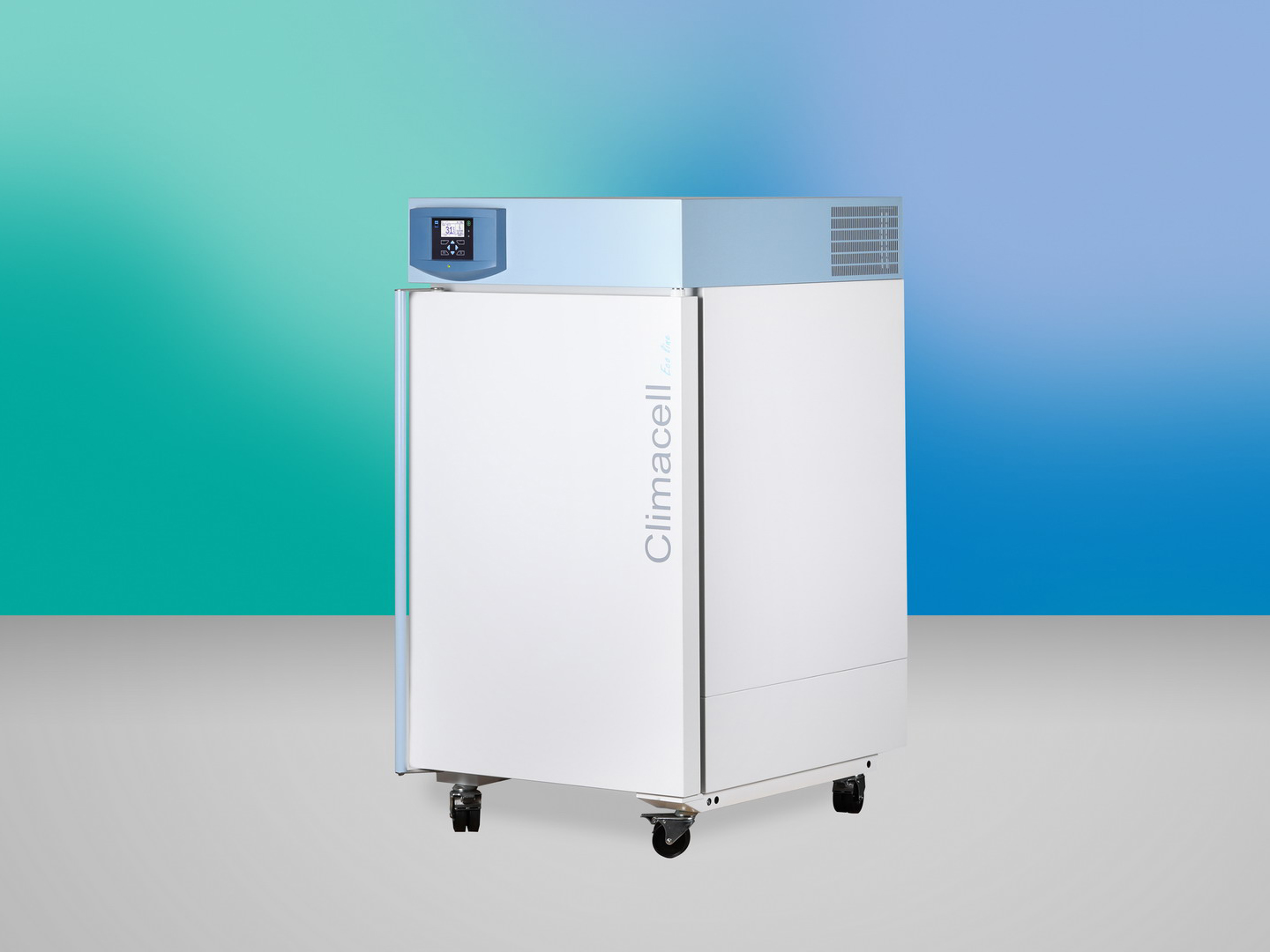

Product images are for illustrative purposes only and may differ from the actual product.
  • laboratory incubator – it always creates the right climate
  • chamber volume 222 litres
  • temperature range: from 0°C to 100°C without humidity, from 10° C to 90° C with humidity
  • patented cooling system (environment-friendly working medium R 134a) and air flow in the chamber ensure fast and accurate distribution of the selected temperature and humidity in the chamber and thus the ideal process of sample heating and reduction of moisture condensation in the chamber
  • offers high operation comfort, precise temperature control, possibility of achieving extremely short times of temperature changes and short times of temperature and humidity equalization in the chamber after the door opening
  • suitable for use in research on germs, plant or tissue cultures, insects, stability tests, etc.
  • comfortable design with multi-processor Fuzzy logic control system, controls placed on a foil keyboard, process information displayed on LED display.
  • wide selection of optional equipment and accessories
  • output for connecting a printer or PC
  • possibility of validation (IQ, OQ)
I am interested in CLIMACELL 222 - ECO line
Technical parameters

Interior of stainless steel material

volume 222 l
depth 520 mm
width 540 mm
height 760 mm

Volume of chamber space

299 l (aprox.)

Trays, stainless steel *)

Min. distance between trays 70 mm
number usual 2 pcs
number max. 10 pcs
Storage area (w × d) 520 × 485 mm

Number of outer metal doors

number 1 pcs

Number of inner glass doors

number 1 pcs

Admissible weight of trays

together inside the oven 70 kg
per 1 tray 30 kg

Electricity data

Max. power 1850 W
IP 20
mains 50/60Hz 230 V

Temperature data

Cooling/down time from 22 °C to 10 °C < 17 min
Heating/up time to 37 °C from the ambient temperature 11 min
Working temperature from 0,0 to 100 °C
Working temperature from -20 to 100 °C
Temperature accuracy - in time 0,2 ± °C
Temperature accuracy in time at 10 °C < 0,5 ±°C
Temperature accuracy in time at 37 °C < 0,5 ±°C

Recovery time after 30 sec. door open according DIN 12 880

at 37 °C 3 min
at 50 °C 6 min

Relative humidity

range 10–98 %

Heat emission

at 37 °C 63 W

Outer dimensions (incl. Door and handle, and Rollers)

depth 895 mm
width 760 mm
height 1370 mm

Weight

brut cca 184 kg
nett cca 135 kg

*) Approx. 50 % of the tray area can be filled in a way a uniform air circulation is enabled inside the chamber.Note: All technical data are related to 22 °C of ambient temperature and ±10 % voltage swing rate ventilator 100 %, defrost off, lighting off.

Changes in the design and make reserved.
The values may differ depending on specific charge and media parameters.
Downloads Optional equipment
Optional equipment
  • Notice
    Product images are for illustrative purposes only and may differ from the actual product.
  • Safety thermostat class according to DIN 12880 (user adjustable)
    Separate measuring circuit protecting the process in case of failure of the main control circuit.
    Safety thermostat class according to DIN 12880 (user adjustable)
  • Stainless steel tray
    AISI 304 stainless steel tray for optimal air circulation
    Stainless steel tray
  • Stainless steel shelf, perforated
    Perforated shelf made of stainless steel AISI 304, suitable for placing a small sample in the chamber. The perforated shelf replaces the tray.
    Stainless steel shelf, perforated
  • Chamber without tray holders and without trays
    Can only be used in combination with some options (higher chamber load capacity, loading system, frame, 316 L)
    (except for the volume 1212 l)
    Chamber without tray holders and without trays
  • Test tubes holder (Loewenstein)
    Special holders for test tubes in a diagonal position, typically for TBC testing. The holders are placed on ordinary trays.
    Test tubes holder (Loewenstein)
  • Test tube shelf Ø 16 mm
    Special holders for test tubes Ø 16 mm stored in a vertical position
    Test tube shelf Ø 16 mm
  • Test tube shelf Ø 22 mm
    Special holders for test tubes Ø 22 mm stored in a vertical position
    Test tube shelf Ø 22 mm
  • Drip tub
    Welded stainless steel tub for collecting condensate from samples in the chamber
    Drip tub
  • Suspension system for samples under the chamber ceiling
    Suspension system for longer samples (e.g. hoses) for hanging under the ceiling of the chamber for easier drying
    Suspension system for samples under the chamber ceiling
  • Left door
    Door hinges on the left. The cabinet with a volume of 22, 404, 707 and 1212 liters is not supplied in the left version.
    Left door
  • Door lock (same key for order)
    Mechanical door lock for the basic level of protection. It is supplied with two keys.
    Door lock (same key for order)
  • Door lock (different keys for order)
    Mechanical door lock for the basic level of protection. It is supplied. Within one set of devices, different lock inserts are distinguished.
    Door lock (different keys for order)
  • Automatic door lock
    The device is equipped with an electromagnetic mechanism for blocking-locking the door. Can be operated manually or automatically.
    Automatic door lock
  • Stainless steel shell
    Stainless steel design of the device housing, including the handle made of stainless steel AISI 304.
    Stainless steel shell
  • Flexible PT sensor (max. number)
    Additional movable sensor in the chamber for measuring the temperature at the sample or in the sample. It is not used for temperature control. The additional sensor data is shown on the display as an additional temperature value. (max. 4 pcs)
    Flexible PT sensor (max. number)
  • Flexible PT sensor lead from the inner side of the door (max. number)
    Additional movable sensor from the door for measuring the temperature at the sample or in the sample. It is not used for temperature control. The additional sensor data is shown on the display as an additional temperature value. (max. 1 pc)
    (consultation required)
    Flexible PT sensor lead from the inner side of the door (max. number)
  • Access port Ø 25 mm R (centre / centre)
    The port with a stainless steel body allows the wires, sensors, etc. to be threaded into the chamber. Ø 25 mm located on the right in the middle of the wall.
    Access port Ø 25 mm R (centre / centre)
  • Access port Ø 25 mm L (centre/centre)
    The port with a stainless steel body allows the wires, sensors, etc. to be threaded into the chamber. Ø 25 mm located on the left in the middle of the wall.
    (except for the volume 404, 707, 1212)
    Access port Ø 25 mm L (centre/centre)
  • Access port Ø 50 mm R (centre / centre)
    The port with a stainless steel body allows the wires, sensors, etc. to be threaded into the chamber. Ø 50 mm located on the right in the middle of the wall.
    Access port Ø 50 mm R (centre / centre)
  • Access port Ø 50 mm L (centre / centre)
    The port with a stainless steel body allows the wires, sensors, etc. to be threaded into the chamber. Ø 50 mm located on the left in the middle of the wall.
    (except for the volume 404, 707, 1212)
    Access port Ø 50 mm L (centre / centre)
  • Access port Ø 100 mm R (centre / centre)
    The port with a stainless steel body allows the wires, sensors, etc. to be threaded into the chamber. Ø 100 mm located on the right in the middle of the wall.
    Access port Ø 100 mm R (centre / centre)
  • Access port Ø 100 mm L (centre / centre)
    The port with a stainless steel body allows the wires, sensors, etc. to be threaded into the chamber. Ø 100 mm located on the left in the middle of the wall.
    (except for the volume 404, 707, 1212)
    Access port Ø 100 mm L (centre / centre)
  • Access port - special shape or position
    The port with a stainless steel body allows the wires, sensors, etc. to be threaded into the chamber. Optional size, shape or position in the wall.
    (consultation required)
    Access port - special shape or position
  • Window and interior lighting
    Panoramic window with three-layer insulating glass enabling observation of samples in the chamber, complemented by mechanically switchable heat-resistant lighting of the chamber.
    (consultation required)
    Window and interior lighting
  • Interior lighting (no window)
    Heat-resistant interior lighting with mechanical switch.
    Interior lighting (no window)
  • Special housing modification for insulator technologies
    A set of mechanical modifications of the device for tight connection to the laboratory insulator.
    (consultation required)
    (except for the volume 1212)
    Special housing modification for insulator technologies
  • Exhaust chimney
    Additional stainless steel chimney for extracting odors from the device. (for connection of fine suction - may affect thermohomogeneity)
    (consultation required)
    Exhaust chimney
  • Modification of the device with castors for adjustable feet
    Adaptation of the device with castors to adjustable legs for greater stability.
    Modification of the device with castors for adjustable feet
  • castors with extendable feet (levelling castors)
    Adaptation of the device to adjustable castors for travel and greater stability.
    castors with extendable feet (levelling castors)
  • Increased load capacity / reinforced chamber frame + built-in frame
    Reinforcement of the device chamber and addition of a built-in frame with its own shelves to increase the load capacity of the device.
    (consultation required)
    Increased load capacity / reinforced chamber frame + built-in frame
  • Increased load capacity of shelves
    Special reinforced sheet metal shelves.
    Increased load capacity of shelves
  • Increased load capacity of the chamber bottom
    Reinforcement of the chamber bottom to increase the load-bearing capacity of the chamber sides.
    (consultation required)
    Increased load capacity of the chamber bottom
  • RAMPS
    Programming function allowing to set the rate of temperature rise in °C/min. Only for ECO PLUS. The ramp can be set as standard or aggressive. More in the Instructions for use.
    RAMPS
  • Aggressive heating
    Service functions allowing to increase or decrease start times. This function can change the properties of the device.
    Aggressive heating
  • ECO PLUS
    The optional extension for Eco devices expands the number of segments from 2 to 8 for one program and allows temperature ramps to be defined within the program.
    ECO PLUS
  • Internal socket max. 100°C (230 V, 3 A protection, IP67)
    Programmable waterproof socket inside the chamber for connecting appliances.
    Internal socket max. 100°C (230 V, 3 A protection, IP67)
  • Potential-free contact (BMS) – remote alarm 24V/1A
    The potential-free contact is connected to a connector, to which a voltage of up to 24 V / 1 A can be connected to it in. It is used to implement a remote alarm (in Anglo-Saxon countries it is referred to as BMS relay - Building Management System relay), which is interrupted by a built-in potential-free contact relay, the fault information is transmitted to rooms other than the one in which the temperature box is located. The relay opens and switches on in all error states reported on the display.
    Potential-free contact (BMS) – remote alarm 24V/1A
  • Emergency stop button
    Hardware main switch with a lockable system, which, if necessary, interrupts the connection of electric power.
    (consultation required)
    Emergency stop button
  • National design of the electric plug
    Power supply termination according to the national standard
    (consultation required)
    National design of the electric plug
  • Operation temperature shift
    Different operating temperature range.
    Operation temperature shift
  • Possibility of flash disk connection as an external data logger
    The data logger requires the device to be equipped with a USB HOST interface, details in the Instructions for use of the device. It allows to record the time course of all measured quantities during the program run on the connected large-capacity USB device (FAT32 format). The data is saved with the selected period in CSV format. Subsequently, they can be processed by MS Excel, Access, etc.
    Possibility of flash disk connection as an external data logger
  • Cooling with defrosting up to 0°C
    Compressor cooling system up to 0 °C with defrost for short (weeks) lower chamber temperatures
    Cooling with defrosting up to 0°C
  • COOLING PLUS
    Compressor cooling system up to 0 °C with defrost for long-term (months) lower chamber temperatures.
    (except for the volume 55, 111, 1212)
    COOLING PLUS
  • Strengthened cooling without defrosting (-10°C)
    Enhanced compressor cooling system without automatic defrost.
    Strengthened cooling without defrosting (-10°C)
  • Strengthened cooling with defrosting (-10°C)
    Enhanced compressor cooling system with automatic defrost.
    Strengthened cooling with defrosting (-10°C)
  • Exposition lighting VIS in the door
    VIS fluorescent lamp panel (with programmable intensity for EVO, for ECO only programmable switch-off) located in the door of the device.
    Exposition lighting VIS in the door
  • LED exposition lighting VIS in the door
    Panel of LED lights VIS (with programmable intensity for EVO, for ECO only programmable switch-off) located in the door of the device.
    LED exposition lighting VIS in the door
  • Exposition lighting, shelves VIS
    Horizontal panel of VIS fluorescent lamps (with programmable intensity for EVO, for ECO only programmable switch-off) located in the chamber.
    Exposition lighting, shelves VIS
  • Exposition lighting, shelves UV
    Horizontal panel of UV fluorescent lamps (with programmable intensity for EVO, for ECO only programmable switch-off) located in the chamber.
    Exposition lighting, shelves UV
  • Exposition lighting, shelves MIX
    Horizontal panel of VIS + UV fluorescent lamps (with programmable intensity for EVO, for ECO only programmable switch-off) located in the chamber.
    Exposition lighting, shelves MIX
  • LED exposition lighting, shelves VIS
    Horizontal panel of LED VIS lights (with programmable intensity for EVO, for ECO only programmable switch-off) located in the chamber.
    LED exposition lighting, shelves VIS
  • Analogue output 4-20mA
    The device contains a converter of the required quantity (temperature, humidity, CO2 concentration) to a 4-20 mA output, connected to a connector connection. It is not a quantity read by the instrument itself and converted to 4-20 mA. The customer processes the value himself and must also ensure the calibration of the sensors. Data cannot be collected using WarmComm.
    Analogue output 4-20mA
  • Software Warmcomm 4 Basic (B)
    WarmComm 4 is designed to record the course of device control. The program uses the Server - Client arrangement. In this configuration, the monitored devices are connected to a Server that records and stores data obtained during control. Individual users then access this data through the Client. This arrangement can be implemented within one PC or within a local network.
    Software Warmcomm 4 Basic (B)
  • Software Warmcomm 4 Professional (P)
    WarmComm 4 is designed to record the course of device control. The program uses the Server - Client arrangement. In this configuration, the monitored devices are connected to a Server that records and stores data obtained during control. Individual users then access this data through the Client. This arrangement can be implemented within one PC or within a local network.
    Software Warmcomm 4 Professional (P)
  • Software Warmcomm 4 FDA (F)
    WarmComm 4 is designed to record the course of device control. The program uses the Server - Client arrangement. In this configuration, the monitored devices are connected to a Server that records and stores data obtained during control. Individual users then access this data through the Client. This arrangement can be implemented within one PC or within a local network.
    Software Warmcomm 4 FDA (F)
  • External printer
    Use the EPSON TM-T20III to print the report.
    External printer
  • Software PrinterArchiv
    The Printer Archive program is intended for recording from the machine's print output. Serves as a direct replacement for a physical printer. The recording is in a fixed, preset format. wider options for handling the recorded protocol, including archiving or printing to a desktop PC printer. Ordinary PCs with Windows XP and higher operating software can handle the hardware requirements. One free RS 232 (COM) port is required for each connected device. The maximum length of the connecting cable is 15 m. For more detailed HW requirements, please contact your dealer.
    Software PrinterArchiv
  • Internal temperature measurement, 1 point
    Validation of the temperature distribution in the chamber at the user's reference temperature (1 point).
    Internal temperature measurement, 1 point
  • Measurement of temperature distribution, 3 points
    Validation of the temperature distribution in the chamber at the user's reference temperature (3 points).
    Measurement of temperature distribution, 3 points
  • Temperature measurement, 9-point (DIN 12880)
    Validation of the temperature distribution in the chamber at the user's reference temperature (9 points).
    Temperature measurement, 9-point (DIN 12880)
  • Measuring of RH, 3 point
    Validation of temperature and humidity distribution in the chamber at the user's reference temperature / humidity (3/1 point).
    Measuring of RH, 3 point
  • Temperature distribution measurement, 27-point (DIN 12880)
    Validation of the temperature distribution in the chamber at the user's reference temperature (27 points).
    Temperature distribution measurement, 27-point (DIN 12880)
  • Validation documentation
    IQOQ documentation for implementation during installation at the customer.
    Validation documentation
  • Ethernet communication port for ECO
    Optional equipment extends the communication capabilities of ECO devices with Ethernet.
    Ethernet communication port for ECO

Are you interested in CLIMACELL 222 - ECO line?

Call us, visit us or fill in the contact form and we will reply by the next working day.

Call Us
+49 89 89 92 26 20 Monday - Friday 8.00 am to 4.00 pm
We are out of office

Please fill in the non-binding inquiry




I am Interested in
