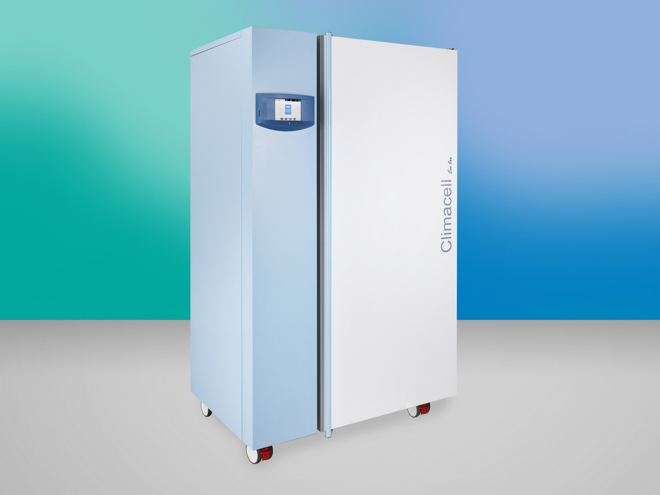

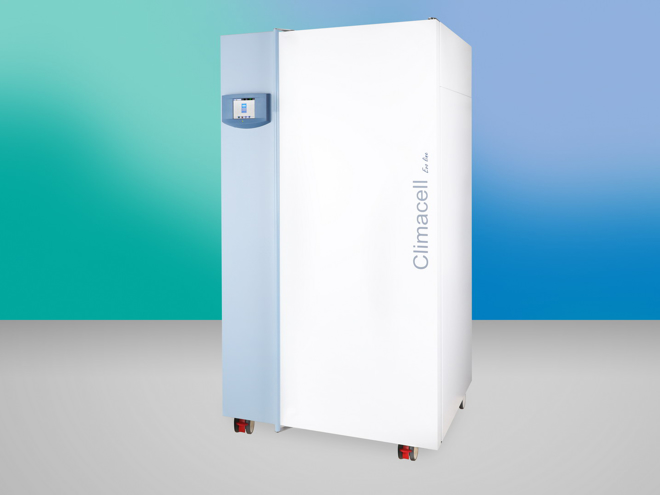

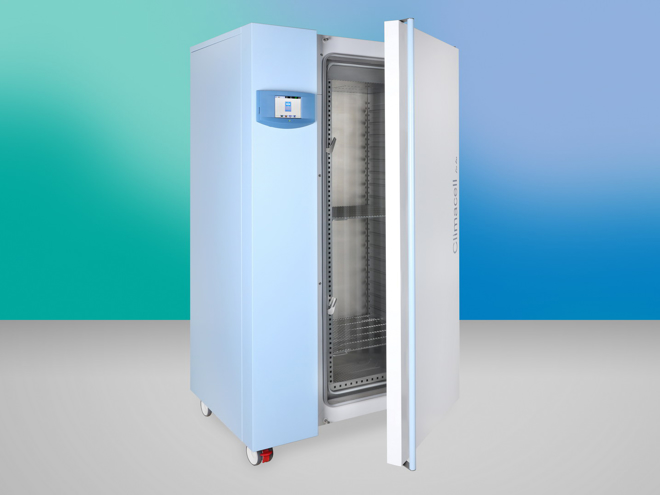

CLIMACELL 404 - EVO line

Product images are for illustrative purposes only and may differ from the actual product.
  • laboratory incubator – it always creates the right climate
  • chamber volume 404 litres
  • temperature range: from 0°C to 100°C without humidity, from 10° C to 90° C with humidity
  • patented cooling system (environment-friendly working medium R 134a) and air flow in the chamber ensure fast and accurate distribution of the selected temperature and humidity in the chamber and thus the ideal process of sample heating and reduction of moisture condensation in the chamber
  • offers high operation comfort, precise temperature control, possibility of achieving extremely short times of temperature changes and short times of temperature and humidity equalization in the chamber after the door opening
  • suitable for use in research on germs, plant or tissue cultures, insects, stability tests, etc.
  • comfortable design with multi-processor Fuzzy logic control system, controls placed on a foil keyboard, process information displayed on LED display.
  • wide selection of optional equipment and accessories
  • output for connecting a printer or PC
  • possibility of validation (IQ, OQ)
I am interested in CLIMACELL 404 - EVO line
Technical parameters

Interior of stainless steel material

volume 404 l
depth 530 mm
width 540 mm
height 1415 mm

Volume of chamber space

530 l (aprox.)

Trays, stainless steel *)

Min. distance between trays 70 mm
number usual 2 pcs
number max. 19 pcs
Storage area (w × d) 520 × 485 mm

Number of outer metal doors

number 1 pcs

Number of inner glass doors

number 1 pcs

Admissible weight of trays

together inside the oven 100 kg
per 1 tray 30 kg

Electricity data

Max. power 2700 W
IP 20
mains 50/60Hz 230 V

Temperature data

Cooling/down time from 22 °C to 10 °C < 19 min
Heating/up time to 37 °C from the ambient temperature 13 min
Working temperature from 0,0 to 100 °C
Working temperature from -20 to 100 °C
Temperature accuracy - in time 0,3 ± °C
Temperature accuracy in time at 10 °C < 1 ±°C
Temperature accuracy in time at 37 °C < 1 ±°C

Recovery time after 30 sec. door open according DIN 12 880

at 37 °C 3 min
at 50 °C 7 min

Relative humidity

range 10–98 %

Heat emission

at 37 °C 123 W

Outer dimensions (incl. Door and handle, and Rollers)

depth 885 mm
width 1100 mm
height 1890 mm

Weight

brut cca 390 kg
nett cca 240 kg

*) Approx. 50 % of the tray area can be filled in a way a uniform air circulation is enabled inside the chamber.Note: All technical data are related to 22 °C of ambient temperature and ±10 % voltage swing rate ventilator 100 %, defrost off, lighting off.

Changes in the design and make reserved.
The values may differ depending on specific charge and media parameters.
Downloads Optional equipment
Optional equipment
  • Notice
    Product images are for illustrative purposes only and may differ from the actual product.
  • Safety thermostat class according to DIN 12880 (user adjustable)
    Separate measuring circuit protecting the process in case of failure of the main control circuit.
    Safety thermostat class according to DIN 12880 (user adjustable)
  • Stainless steel tray
    AISI 304 stainless steel tray for optimal air circulation
    Stainless steel tray
  • Stainless steel shelf, perforated
    Perforated shelf made of stainless steel AISI 304, suitable for placing a small sample in the chamber. The perforated shelf replaces the tray.
    Stainless steel shelf, perforated
  • Chamber without tray holders and without trays
    Can only be used in combination with some options (higher chamber load capacity, loading system, frame, 316 L)
    (except for the volume 1212 l)
    Chamber without tray holders and without trays
  • Test tubes holder (Loewenstein)
    Special holders for test tubes in a diagonal position, typically for TBC testing. The holders are placed on ordinary trays.
    Test tubes holder (Loewenstein)
  • Test tube shelf Ø 16 mm
    Special holders for test tubes Ø 16 mm stored in a vertical position
    Test tube shelf Ø 16 mm
  • Test tube shelf Ø 22 mm
    Special holders for test tubes Ø 22 mm stored in a vertical position
    Test tube shelf Ø 22 mm
  • Drip tub
    Welded stainless steel tub for collecting condensate from samples in the chamber
    Drip tub
  • Suspension system for samples under the chamber ceiling
    Suspension system for longer samples (e.g. hoses) for hanging under the ceiling of the chamber for easier drying
    Suspension system for samples under the chamber ceiling
  • Left door
    Door hinges on the left. The cabinet with a volume of 22, 404, 707 and 1212 liters is not supplied in the left version.
    Left door
  • Door lock (same key for order)
    Mechanical door lock for the basic level of protection. It is supplied with two keys.
    Door lock (same key for order)
  • Door lock (different keys for order)
    Mechanical door lock for the basic level of protection. It is supplied. Within one set of devices, different lock inserts are distinguished.
    Door lock (different keys for order)
  • Automatic door lock
    The device is equipped with an electromagnetic mechanism for blocking-locking the door. Can be operated manually or automatically.
    Automatic door lock
  • Stainless steel shell
    Stainless steel design of the device housing, including the handle made of stainless steel AISI 304.
    Stainless steel shell
  • Flexible PT sensor (max. number)
    Additional movable sensor in the chamber for measuring the temperature at the sample or in the sample. It is not used for temperature control. The additional sensor data is shown on the display as an additional temperature value. (max. 4 pcs)
    Flexible PT sensor (max. number)
  • Flexible PT sensor lead from the inner side of the door (max. number)
    Additional movable sensor from the door for measuring the temperature at the sample or in the sample. It is not used for temperature control. The additional sensor data is shown on the display as an additional temperature value. (max. 4 pcs)
    (consultation required)
    Flexible PT sensor lead from the inner side of the door (max. number)
  • Access port Ø 25 mm R (centre / centre)
    The port with a stainless steel body allows the wires, sensors, etc. to be threaded into the chamber. Ø 25 mm located on the right in the middle of the wall.
    Access port Ø 25 mm R (centre / centre)
  • Access port Ø 25 mm L centre/centre)
    The port with a stainless steel body allows the wires, sensors, etc. to be threaded into the chamber. Ø 25 mm located on the left in the middle of the wall.
    (except for the volume 404, 707, 1212)
    Access port Ø 25 mm L centre/centre)
  • Access port Ø 50 mm R (centre / centre)
    The port with a stainless steel body allows the wires, sensors, etc. to be threaded into the chamber. Ø 50 mm located on the right in the middle of the wall.
    Access port Ø 50 mm R (centre / centre)
  • Access port Ø 50 mm L (centre / centre)
    The port with a stainless steel body allows the wires, sensors, etc. to be threaded into the chamber. Ø 50 mm located on the left in the middle of the wall.
    (except for the volume 404, 707, 1212)
    Access port Ø 50 mm L (centre / centre)
  • Access port Ø 100 mm R (centre / centre)
    The port with a stainless steel body allows the wires, sensors, etc. to be threaded into the chamber. Ø 100 mm located on the right in the middle of the wall.
    Access port Ø 100 mm R (centre / centre)
  • Access port Ø 100 mm L (centre / centre)
    The port with a stainless steel body allows the wires, sensors, etc. to be threaded into the chamber. Ø 100 mm located on the left in the middle of the wall.
    (except for the volume 404, 707, 1212)
    Access port Ø 100 mm L (centre / centre)
  • Access port - special shape or position
    The port with a stainless steel body allows the wires, sensors, etc. to be threaded into the chamber. Optional size, shape or position in the wall.
    (consultation required)
    Access port - special shape or position
  • Window and interior lighting
    Panoramic window with three-layer insulating glass enabling observation of samples in the chamber, complemented by mechanically switchable heat-resistant lighting of the chamber. With CLC, FC EVO, the lighting can also be switched electronically.
    (consultation required)
    Window and interior lighting
  • Interior lighting (no window)
    Heat-resistant interior lighting with mechanical switch. With the CLC, FC EVO, the lighting can also be switched on electronically, or when the door is opened.
    Interior lighting (no window)
  • Special housing modification for insulator technologies
    A set of mechanical modifications of the device for tight connection to the laboratory insulator.
    (consultation required)
    (except for the volume 1212 l)
    Special housing modification for insulator technologies
  • Exhaust chimney
    Additional stainless steel chimney for extracting odors from the device. (for connection of fine suction - may affect thermohomogeneity)
    (consultation required)
    Exhaust chimney
  • Modification of the device with castors for adjustable feet
    Adaptation of the device with castors to adjustable legs for greater stability.
    Modification of the device with castors for adjustable feet
  • Castors with extendable feet (levelling castors)
    Adaptation of the device to adjustable castors for travel and greater stability.
    Castors with extendable feet (levelling castors)
  • Increased load capacity / reinforced chamber frame + built-in frame
    Reinforcement of the device chamber and addition of a built-in frame with its own shelves to increase the load capacity of the device.
    Increased load capacity / reinforced chamber frame + built-in frame
  • Increased load capacity of shelves
    Special reinforced sheet metal shelves.
    Increased load capacity of shelves
  • Increased load capacity of the chamber bottom
    Reinforcement of the chamber bottom to increase the load-bearing capacity of the chamber sides.
    (consultation required)
    Increased load capacity of the chamber bottom
  • Aggressive heating
    Service functions allowing to increase or decrease start times. This function can change the properties of the device.
    Aggressive heating
  • Internal socket max. 100°C (230 V, 3 A protection, IP67)
    Programmable waterproof socket inside the chamber for connecting appliances.
    Internal socket max. 100°C (230 V, 3 A protection, IP67)
  • Potential-free contact (BMS) – remote alarm 24V/1A
    The potential-free contact is connected to a connector, to which a voltage of up to 24 V / 1 A can be connected to it. It is used to implement a remote alarm (in Anglo-Saxon countries it is referred to as BMS relay - Building Management System relay), which is interrupted by a built-in potential-free contact relay, the fault information is transmitted to rooms other than the one in which the temperature box is located. The relay opens and switches on in all error states reported on the display.
    Potential-free contact (BMS) – remote alarm 24V/1A
  • Emergency stop button
    Hardware main switch with a lockable system, which, if necessary, interrupts the connection of electric power.
    (consultation required)
    Emergency stop button
  • National design of the electric plug
    Power supply termination according to the national standard
    (consultation required)
    National design of the electric plug
  • Operation temperature shift
    Different operating temperature range.
    Operation temperature shift
  • Hot-air decontamination
    Modification of the device enabling hot air decontamination of the device [160 °C]
    (consultation required)
    Hot-air decontamination
  • Regulation of CO2 0,2-20% (-20 up to 55°C) without decontamination
    CO2 regulation. The CO2 control range is 0 to 20% (0–2000 ppm), the maximum operating temperature is limited to 55 °C.
    Regulation of CO2 0,2-20%  (-20 up to 55°C) without decontamination
  • Regulation of CO2 0,2-20% (0 up to 65°C) decontamination possible
    CO2 regulation. The range of CO2 regulation is 0 to 20% (0–2000 ppm), max. Operating temperature is increased to 160 °C. Probe life is limited by the number of decontamination cycles.
    Regulation of CO2 0,2-20%  (0 up to 65°C) decontamination possible
  • One-way CO2 valve
    Accessories for connecting the gas pressure vessel to the device.
    One-way CO2 valve
  • Inert gas or aeration connection
    (consultation required)
    Inert gas or aeration connection
  • Cooling with defrosting up to 0°C
    Compressor cooling system up to 0 °C with defrost for short (weeks) lower chamber temperatures.
    Cooling with defrosting up to 0°C
  • COOLING PLUS
    Compressor cooling system up to 0 °C with defrost for long-term (months) lower chamber temperatures.
    (except for the volume 55, 111, 1212)
    COOLING PLUS
  • Strengthened cooling without defrosting (the lowest temperature - 20°C)
    Enhanced compressor cooling system without automatic defrost.
    Strengthened cooling without defrosting (the lowest temperature - 20°C)
  • Strengthened cooling with defrosting (the lowest temperature -20°C)
    Enhanced compressor cooling system with automatic defrost.
    Strengthened cooling with defrosting (the lowest temperature -20°C)
  • Exposition lighting VIS in the door
    VIS fluorescent lamp panel (with programmable intensity for EVO) located in the door of the device.
    Exposition lighting VIS in the door
  • LED exposition lighting VIS in the door
    Panel of LED lights VIS (with programmable intensity for EVO) located in the door of the device.
    LED exposition lighting VIS in the door
  • Exposition lighting, shelves VIS
    Horizontal panel of VIS fluorescent lamps (with programmable intensity for EVO) located in the chamber.
    Exposition lighting, shelves VIS
  • Exposition lighting, shelves UV
    Horizontal panel of UV fluorescent lamps (with programmable intensity for EVO) located in the chamber.
    Exposition lighting, shelves UV
  • Exposition lighting, shelves MIX
    Horizontal panel of VIS + UV fluorescent lamps (with programmable intensity for EVO) located in the chamber.
    Exposition lighting, shelves MIX
  • LED exposition lighting, shelves VIS
    Horizontal panel of LED VIS lights (with programmable intensity for EVO) located in the chamber.
    LED exposition lighting, shelves VIS
  • Light exposition measurement and control, VIS
    VIS intensity sensor for light exposure measurement and control (max 4)
    Light exposition measurement and control, VIS
  • Light exposition measurement and control, UV
    UV sensor for light exposure measurement and control (max 4)
    Light exposition measurement and control, UV
  • Analogue output 4-20mA
    The device contains a converter of the required quantity (temperature, humidity, CO2 concentration) to a 4-20 mA output, connected to a connector connection. It is not a quantity read by the instrument itself and converted to 4-20 mA. The customer processes the value himself and must also ensure the calibration of the sensors. Data cannot be collected using WarmComm.
    Analogue output 4-20mA
  • Software Warmcomm 4 Basic (B)
    WarmComm 4 is designed to record the course of device control. The program uses the Server - Client arrangement. In this configuration, the monitored devices are connected to a Server that records and stores data obtained during control. Individual users then access this data through the Client. This arrangement can be implemented within one PC or within a local network.
    Software Warmcomm 4 Basic (B)
  • Software Warmcomm 4 Professional (P)
    WarmComm 4 is designed to record the course of device control. The program uses the Server - Client arrangement. In this configuration, the monitored devices are connected to a Server that records and stores data obtained during control. Individual users then access this data through the Client. This arrangement can be implemented within one PC or within a local network.
    Software Warmcomm 4 Professional (P)
  • Software Warmcomm 4 FDA (F)
    WarmComm 4 is designed to record the course of device control. The program uses the Server - Client arrangement. In this configuration, the monitored devices are connected to a Server that records and stores data obtained during control. Individual users then access this data through the Client. This arrangement can be implemented within one PC or within a local network.
    Software Warmcomm 4 FDA (F)
  • External printer
    Use the EPSON TM-T20III to print the report.
    External printer
  • Software PrinterArchiv
    The Printer Archive program is intended for recording from the machine's print output. Serves as a direct replacement for a physical printer. The recording is in a fixed, preset format. wider options for handling the recorded protocol, including archiving or printing to a desktop PC printer. Ordinary PCs with Windows XP and higher operating software can handle the hardware requirements. One free RS 232 (COM) port is required for each connected device. The maximum length of the connecting cable is 15 m. For more detailed HW requirements, please contact your dealer.
    Software PrinterArchiv
  • Internal temperature measurement, 1 point
    Validation of the temperature distribution in the chamber at the user's reference temperature (1 point).
    Internal temperature measurement, 1 point
  • Measurement of temperature distribution, 3 points
    Validation of the temperature distribution in the chamber at the user's reference temperature (3 points).
    Measurement of temperature distribution, 3 points
  • Temperature measurement, 9-point (DIN 12880)
    Validation of the temperature distribution in the chamber at the user's reference temperature (9 points).
    Temperature measurement, 9-point (DIN 12880)
  • Measuring of RH, 3 point
    Validation of temperature and humidity distribution in the chamber at the user's reference temperature / humidity (3/1 point).
    Measuring of RH, 3 point
  • Temperature distribution measurement, 27-point (DIN 12880)
    Validation of the temperature distribution in the chamber at the user's reference temperature (1 point).
    Temperature distribution measurement, 27-point (DIN 12880)
  • Validation documentation
    IQOQ documentation for implementation during installation at the customer.
    Validation documentation
  • Communication module plus for EVO
    Optional equipment expands the communication capabilities of the Evo devices with Ethernet and USB Host. Program logs and audit trails can be exported in CSV format to a USB device connected to the USB Host interface on the communication module. The audit trail can also be exported in XML format. It is also possible to export program settings, user list and device configuration in binary format for backup purposes.
    Communication module plus for EVO
  • Two-way CO2 valve
    Accessories for connecting the gas pressure vessel to the device
    Two-way CO2 valve
  • Automatic replacement unit of CO2 at the input
    Accessories for automatic exchange of connections of two pressure vessels connected to the device.
    Automatic replacement unit of CO2 at the input

Are you interested in CLIMACELL 404 - EVO line?

Call us, visit us or fill in the contact form and we will reply by the next working day.

Call Us
+49 89 89 92 26 20 Monday - Friday 8.00 am to 4.00 pm
We are out of office

Please fill in the non-binding inquiry




I am Interested in
