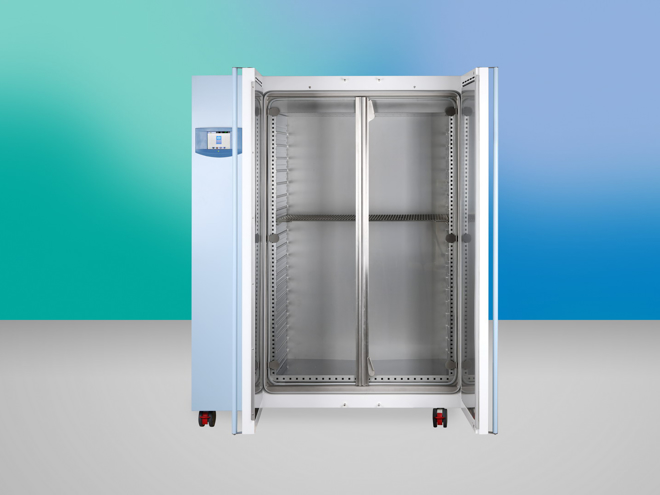

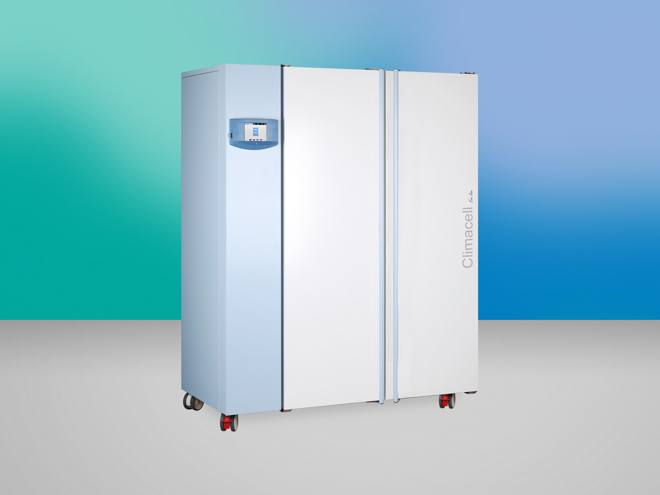

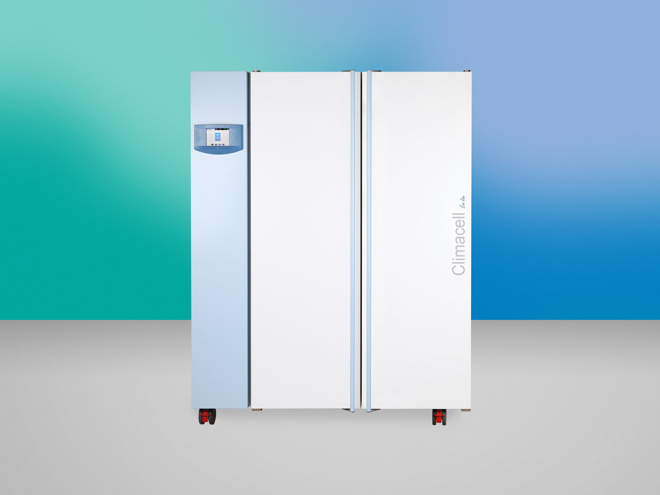

laboratory incubator – it always creates the right climate
chamber volume 707 litres
temperature range: from 0°C to 100°C without humidity, from 10° C to 90° C with humidity
patented cooling system (environment-friendly working medium R 134a) and air flow in the chamber ensure fast and accurate distribution of the selected temperature and humidity in the chamber and thus the ideal process of sample heating and reduction of moisture condensation in the chamber
offers high operation comfort, precise temperature control, possibility of achieving extremely short times of temperature changes and short times of temperature and humidity equalization in the chamber after the door opening
suitable for use in research on germs, plant or tissue cultures, insects, stability tests, etc.
comfortable design with multi-processor Fuzzy logic control system, controls placed on a foil keyboard, process information displayed on LED display.
wide selection of optional equipment and accessories
Heating/up time to 37 °C from the ambient temperature
13 min
Working temperature from 0,0 to
100 °C
Working temperature from -20 to
100 °C
Temperature accuracy - in time
0,4 ± °C
Temperature accuracy in time at 10 °C
< 1 ±°C
Temperature accuracy in time at 37 °C
< 1 ±°C
Recovery time after 30 sec. door open according DIN 12 880
at 37 °C
6 min
at 50 °C
6 min
Relative humidity
range
10–98 %
Heat emission
at 37 °C
148 W
Outer dimensions (incl. Door and handle, and Rollers)
depth
885 mm
width
1500 mm
height
1890 mm
Weight
brut cca
500 kg
nett cca
280 kg
*) Approx. 50 % of the tray area can be filled in a way a uniform air circulation is enabled inside the chamber.Note: All technical data are related to 22 °C of ambient temperature and ±10 % voltage swing rate ventilator 100 %, defrost off, lighting off.
Changes in the design and make reserved. The values may differ depending on specific charge and media parameters.
Product images are for illustrative purposes only and may differ from the actual product.
Safety thermostat class according to DIN 12880 (user adjustable)
Separate measuring circuit protecting the process in case of failure of the main control circuit.
Stainless steel tray
AISI 304 stainless steel tray for optimal air circulation
Stainless steel shelf, perforated
Perforated shelf made of stainless steel AISI 304, suitable for placing a small sample in the chamber. The perforated shelf replaces the tray.
Chamber without tray holders and without trays
Can only be used in combination with some options (higher chamber load capacity, loading system, frame, 316 L) (except for the volume 1212 l)
Test tubes holder (Loewenstein)
Special holders for test tubes in a diagonal position, typically for TBC testing. The holders are placed on ordinary trays.
Test tube shelf Ø 16 mm
Special holders for test tubes Ø 16 mm stored in a vertical position
Test tube shelf Ø 22 mm
Special holders for test tubes Ø 22 mm stored in a vertical position
Drip tub
Welded stainless steel tub for collecting condensate from samples in the chamber
Suspension system for samples under the chamber ceiling
Suspension system for longer samples (e.g. hoses) for hanging under the ceiling of the chamber for easier drying
Left door
Door hinges on the left. The cabinet with a volume of 22, 404, 707 and 1212 liters is not supplied in the left version.
Door lock (same key for order)
Mechanical door lock for the basic level of protection. It is supplied with two keys.
Door lock (different keys for order)
Mechanical door lock for the basic level of protection. It is supplied. Within one set of devices, different lock inserts are distinguished.
Automatic door lock
The device is equipped with an electromagnetic mechanism for blocking-locking the door. Can be operated manually or automatically.
Stainless steel shell
Stainless steel design of the device housing, including the handle made of stainless steel AISI 304.
Flexible PT sensor (max. number)
Additional movable sensor in the chamber for measuring the temperature at the sample or in the sample. It is not used for temperature control. The additional sensor data is shown on the display as an additional temperature value. (max. 4 pcs)
Flexible PT sensor lead from the inner side of the door (max. number)
Additional movable sensor from the door for measuring the temperature at the sample or in the sample. It is not used for temperature control. The additional sensor data is shown on the display as an additional temperature value. (max. 4 pcs) (consultation required)
Access port Ø 25 mm R (centre / centre)
The port with a stainless steel body allows the wires, sensors, etc. to be threaded into the chamber. Ø 25 mm located on the right in the middle of the wall.
Access port Ø 25 mm L centre/centre)
The port with a stainless steel body allows the wires, sensors, etc. to be threaded into the chamber. Ø 25 mm located on the left in the middle of the wall. (except for the volume 404, 707, 1212)
Access port Ø 50 mm R (centre / centre)
The port with a stainless steel body allows the wires, sensors, etc. to be threaded into the chamber. Ø 50 mm located on the right in the middle of the wall.
Access port Ø 50 mm L (centre / centre)
The port with a stainless steel body allows the wires, sensors, etc. to be threaded into the chamber. Ø 50 mm located on the left in the middle of the wall. (except for the volume 404, 707, 1212)
Access port Ø 100 mm R (centre / centre)
The port with a stainless steel body allows the wires, sensors, etc. to be threaded into the chamber. Ø 100 mm located on the right in the middle of the wall.
Access port Ø 100 mm L (centre / centre)
The port with a stainless steel body allows the wires, sensors, etc. to be threaded into the chamber. Ø 100 mm located on the left in the middle of the wall. (except for the volume 404, 707, 1212)
Access port - special shape or position
The port with a stainless steel body allows the wires, sensors, etc. to be threaded into the chamber. Optional size, shape or position in the wall. (consultation required)
Window and interior lighting
Panoramic window with three-layer insulating glass enabling observation of samples in the chamber, complemented by mechanically switchable heat-resistant lighting of the chamber. With CLC, FC EVO, the lighting can also be switched electronically. (consultation required)
Interior lighting (no window)
Heat-resistant interior lighting with mechanical switch. With the CLC, FC EVO, the lighting can also be switched on electronically, or when the door is opened.
Special housing modification for insulator technologies
A set of mechanical modifications of the device for tight connection to the laboratory insulator. (consultation required) (except for the volume 1212 l)
Exhaust chimney
Additional stainless steel chimney for extracting odors from the device. (for connection of fine suction - may affect thermohomogeneity) (consultation required)
Modification of the device with castors for adjustable feet
Adaptation of the device with castors to adjustable legs for greater stability.
Castors with extendable feet (levelling castors)
Adaptation of the device to adjustable castors for travel and greater stability.
The potential-free contact is connected to a connector, to which a voltage of up to 24 V / 1 A can be connected to it. It is used to implement a remote alarm (in Anglo-Saxon countries it is referred to as BMS relay - Building Management System relay), which is interrupted by a built-in potential-free contact relay, the fault information is transmitted to rooms other than the one in which the temperature box is located. The relay opens and switches on in all error states reported on the display.
Emergency stop button
Hardware main switch with a lockable system, which, if necessary, interrupts the connection of electric power. (consultation required)
National design of the electric plug
Power supply termination according to the national standard (consultation required)
Operation temperature shift
Different operating temperature range.
Hot-air decontamination
Modification of the device enabling hot air decontamination of the device [160 °C] (consultation required)
Regulation of CO2 0,2-20% (-20 up to 55°C) without decontamination
CO2 regulation. The CO2 control range is 0 to 20% (0–2000 ppm), the maximum operating temperature is limited to 55 °C.
Regulation of CO2 0,2-20% (0 up to 65°C) decontamination possible
CO2 regulation. The range of CO2 regulation is 0 to 20% (0–2000 ppm), max. Operating temperature is increased to 160 °C. Probe life is limited by the number of decontamination cycles.
One-way CO2 valve
Accessories for connecting the gas pressure vessel to the device.
Inert gas or aeration connection
(consultation required)
Cooling with defrosting up to 0°C
Compressor cooling system up to 0 °C with defrost for short (weeks) lower chamber temperatures.
COOLING PLUS
Compressor cooling system up to 0 °C with defrost for long-term (months) lower chamber temperatures. (except for the volume 55, 111, 1212)
Strengthened cooling without defrosting (the lowest temperature - 20°C)
Enhanced compressor cooling system without automatic defrost.
Strengthened cooling with defrosting (the lowest temperature -20°C)
Enhanced compressor cooling system with automatic defrost.
Exposition lighting VIS in the door
VIS fluorescent lamp panel (with programmable intensity for EVO) located in the door of the device.
LED exposition lighting VIS in the door
Panel of LED lights VIS (with programmable intensity for EVO) located in the door of the device.
Exposition lighting, shelves VIS
Horizontal panel of VIS fluorescent lamps (with programmable intensity for EVO) located in the chamber.
Exposition lighting, shelves UV
Horizontal panel of UV fluorescent lamps (with programmable intensity for EVO) located in the chamber.
Exposition lighting, shelves MIX
Horizontal panel of VIS + UV fluorescent lamps (with programmable intensity for EVO) located in the chamber.
LED exposition lighting, shelves VIS
Horizontal panel of LED VIS lights (with programmable intensity for EVO) located in the chamber.
Light exposition measurement and control, VIS
VIS intensity sensor for light exposure measurement and control (max 4)
Light exposition measurement and control, UV
UV sensor for light exposure measurement and control (max 4)
Analogue output 4-20mA
The device contains a converter of the required quantity (temperature, humidity, CO2 concentration) to a 4-20 mA output, connected to a connector connection. It is not a quantity read by the instrument itself and converted to 4-20 mA. The customer processes the value himself and must also ensure the calibration of the sensors. Data cannot be collected using WarmComm.
Software Warmcomm 4 Basic (B)
WarmComm 4 is designed to record the course of device control. The program uses the Server - Client arrangement. In this configuration, the monitored devices are connected to a Server that records and stores data obtained during control. Individual users then access this data through the Client. This arrangement can be implemented within one PC or within a local network.
Software Warmcomm 4 Professional (P)
WarmComm 4 is designed to record the course of device control. The program uses the Server - Client arrangement. In this configuration, the monitored devices are connected to a Server that records and stores data obtained during control. Individual users then access this data through the Client. This arrangement can be implemented within one PC or within a local network.
Software Warmcomm 4 FDA (F)
WarmComm 4 is designed to record the course of device control. The program uses the Server - Client arrangement. In this configuration, the monitored devices are connected to a Server that records and stores data obtained during control. Individual users then access this data through the Client. This arrangement can be implemented within one PC or within a local network.
External printer
Use the EPSON TM-T20III to print the report.
Software PrinterArchiv
The Printer Archive program is intended for recording from the machine's print output. Serves as a direct replacement for a physical printer. The recording is in a fixed, preset format. wider options for handling the recorded protocol, including archiving or printing to a desktop PC printer. Ordinary PCs with Windows XP and higher operating software can handle the hardware requirements. One free RS 232 (COM) port is required for each connected device. The maximum length of the connecting cable is 15 m. For more detailed HW requirements, please contact your dealer.
Internal temperature measurement, 1 point
Validation of the temperature distribution in the chamber at the user's reference temperature (1 point).
Measurement of temperature distribution, 3 points
Validation of the temperature distribution in the chamber at the user's reference temperature (3 points).
Temperature measurement, 9-point (DIN 12880)
Validation of the temperature distribution in the chamber at the user's reference temperature (9 points).
Measuring of RH, 3 point
Validation of temperature and humidity distribution in the chamber at the user's reference temperature / humidity (3/1 point).
Temperature distribution measurement, 27-point (DIN 12880)
Validation of the temperature distribution in the chamber at the user's reference temperature (1 point).
Validation documentation
IQOQ documentation for implementation during installation at the customer.
Communication module plus for EVO
Optional equipment expands the communication capabilities of the Evo devices with Ethernet and USB Host. Program logs and audit trails can be exported in CSV format to a USB device connected to the USB Host interface on the communication module. The audit trail can also be exported in XML format. It is also possible to export program settings, user list and device configuration in binary format for backup purposes.
Two-way CO2 valve
Accessories for connecting the gas pressure vessel to the device
Automatic replacement unit of CO2 at the input
Accessories for automatic exchange of connections of two pressure vessels connected to the device.
